Cache Points For Production-Scale Occlusion-Aware Many-Lights Sampling And Volumetric Scattering

Yining Karl Li, Charlotte Zhu, Gregory Nichols, Peter Kutz, Wei-Feng Wayne Huang, David Adler, Brent Burley, and Daniel Teece

DigiPro '24: Proceedings of the Digital Production Symposium 2024. Article No. 6

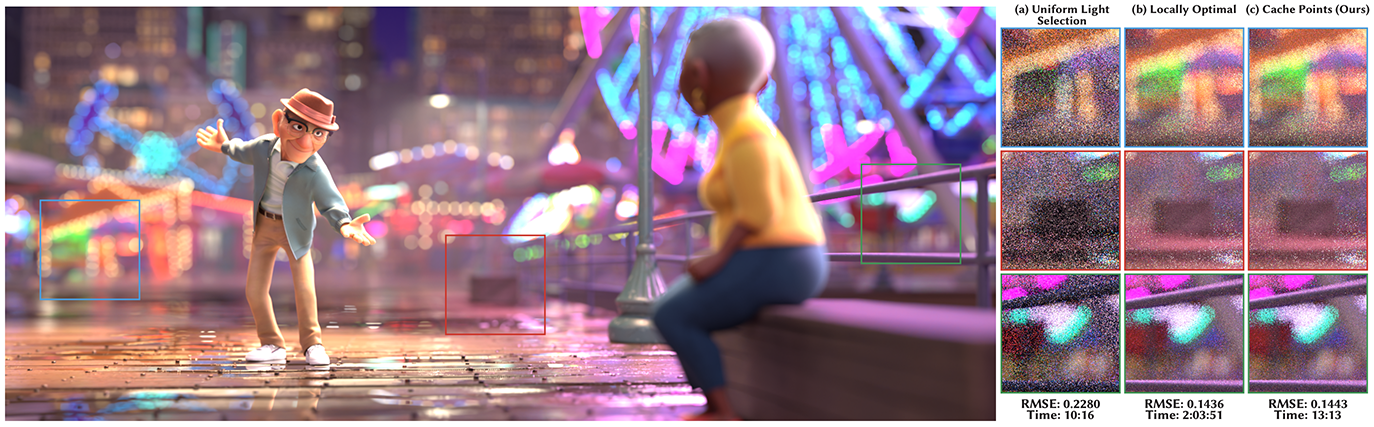

A production scene from Us Again containing 4881396 light sources (analytical lights, emissive triangles, and emissive volumes), rendered using 32 samples per pixel with uniform light selection (a), locally optimal light selection (b), and our cache points system (c). Uniform light selection produces a faster result but converges poorly, while building a locally optimal light distribution per path vertex produces a more converged result but is much slower. Our cache points system (c) produces a noise level similar to (b) while maintaining performance closer to (a). To clearly show noise differences, this figure does not include the post-renderer compositing that is present in the final production frame.

Abstract

A hallmark capability that defines a renderer as a production renderer is the ability to scale to handle scenes with extreme complexity, including complex illumination cast by a vast number of light sources. In this paper, we present Cache Points, the system used by Disney’s Hyperion Renderer to perform efficient unbiased importance sampling of direct illumination in scenes containing up to millions of light sources. Our cache points system includes a number of novel features. We build a spatial data structure over points that light sampling will occur from instead of over the lights themselves. We do online learning of occlusion and factor this into our importance sampling distribution. We also accelerate sampling in difficult volume scattering cases.

Over the past decade, our cache points system has seen extensive production usage on every feature film and animated short produced by Walt Disney Animation Studios, enabling artists to design lighting environments without concern for complexity. In this paper, we will survey how the cache points system is built, works, impacts production lighting and artist workflows, and factors into the future of production rendering at Disney Animation.
